Gonatus onyx Young 1972

Tsunemi Kubodera, F. G. Hochberg, and Richard E. Young
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Containing group: Gonatus

Introduction

Gonatus onyx is a small and common species of Gonatus. Spent females reach a size of 132-145 mm ML (Seibel, et al., 2000).
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

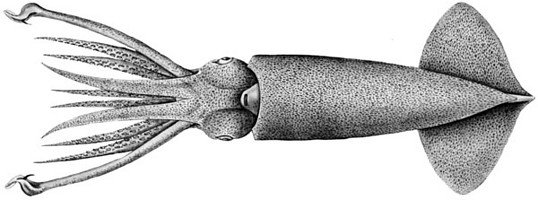

Figure. Ventral view of G. onyx. Drawing from Young (1972).

Diagnosis

A Gonatus with ...

Characteristics

  1. Arms
    1. Total of 25-30 hooks and suckers present on proximal half of each arm I-III; squid >40 mm GL with 30-37 suckers on proximal half of each arm IV.

  2. Tentacles
    1. Clubs 20-25% of GL.
    2. Club dactylus with 5-6 irregular series at proximal end but quickly decreasing to 4 series; over most of dactylus suckers in transverse series approximately equal in size.
    3. Club ventral-marginal zone with 4 (rarely 5) series of suckers in central part; suckers of medial suckers ca. one-half diameter of suckers of marginal series.
    4. Club dorsal-marginal zone with 2-3 irregular series dorsal to large central hook.
    5. Club medial zone with large central hook and proximal series of suckers; proximal suckers never transformed into hooks. Usually no zone member distal to central hook, occasionally large sucker present that may bear a large tooth; rarely a small hook present but usually on just tentacle.
    6. Total number of suckers (excluding terminal pad and medial zone) on tentacular club: about 160-200.
    7. Median region of tentacular stalk between marginal series with ca. 0-27 suckers (usually less than 10) scattered suckers.
    8. Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

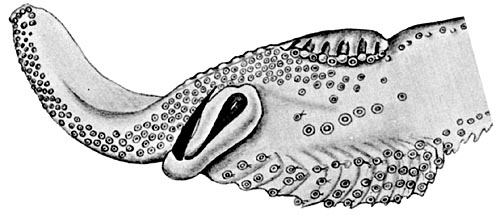

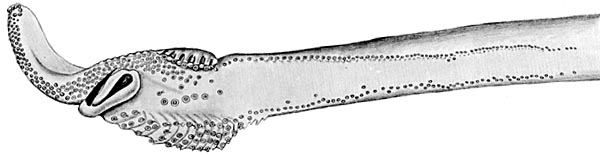

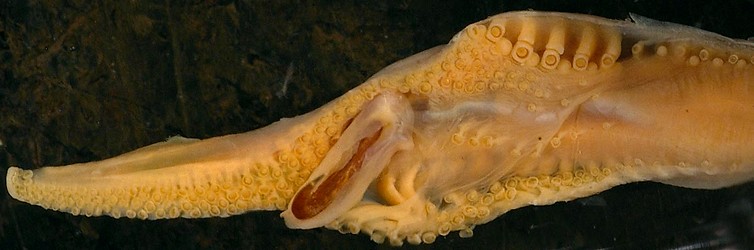

      Figure. Oral view of the tentacle of G. onyx, 69 mm GL. Top - Distal region of tentacle. Middle - Enlargement of club from top figure. Drawings from Young (1972). Bottom - Right tentacular club, paratype, 98 mm ML, female. Photograph by R. Young.

  3. Head
    1. Beaks: Descriptions can be found here: Lower beak; upper beak. See this site also.

  4. Photophores
    1. Photophores absent

Comments

More details of the description can be seen here.

Life History

Gonatus onyx females brood their young in deep water.  Five females have been observed with an ROV carrying large egg masses at depths of 1539 -2522 m in Monterey canyon off California (eastern North Pacific). The black egg mass, with 2000-3000 eggs, is a hollow tube open near the mouth and at the distal end. The gelatinous tube walls consist of double membranes that join together forming a single-layer honeycomb with a single egg in each chamber of the honeycomb. Regular movements of the arms (every 30-40 sec) flush water through the egg mass to aerate the embryos. The black color of the egg mass probably comes from ink released by the female (Seibel et al. 2000; Seibel, et al. 2005).

A video of one of the brooding squid observed by Seibel, et al. 2005, can be seen here.  The video starts slowly but is impressive near the end. The embryos were ready to hatch and, peerhaps, the disturbance created by the ROV stimulated hatching.

Water temperatures where the females were observed varied between 1.7 - 3.0°C and at these temperatures the embryos may require as long as 6-9 months to develop. Brooding females lack tentacles, hold onto the egg mass with arm hooks,and apparently don't feed during brooding. High lipid content of the digestive gland and protein in the mantle muscle of the female presumably fuel the metabolism through this long brooding period. Observations of declines in these fuels and female activity with increasing stage of embryonic development support this assumption(Seibel et al. 2000; Seibel, et al. 2005).

Observation of a brooding gonatid in shallow water in the Sea of Okhotsk (Okutani, 1995) combined with the distance required for hatchlings to reach their surface habitat from the brooding sites off California suggests that females transport the egg masses to near-surface waters at the time of hatching (Seibel et al. 2000).

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

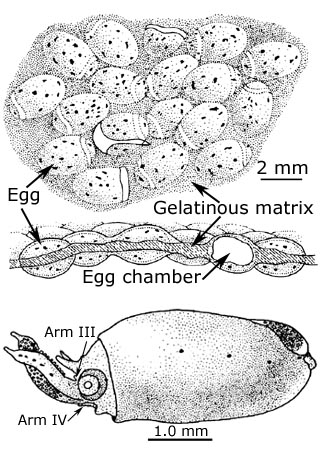

Figure. Left - Ventrolateral view of G. onyx brooding a mass of eggs at a depth of 1539 m in Monterey Canyon off California. ROV photograph from Seibel et al. (2005), © 2002 MBARI. Right top - Frontal and cross-sectional views of pieces of an egg mass of G. onyx. Right bottom - Side view of a hatchling from the egg mass. The club has 70-90 sucker buds. Drawings from Seibel, et al. (2000).

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Laboratory hatchling of G. onyx from a captured egg mass, ca. 3 mm ML. Photograph from  Seibel, et al. (2005).

Paralarvae collected in the plankton can be identified by the dorsal-head chromatophore pattern which is Type II-1 [three transverse rows of chromatophores with one chromatophore in the anterior row (this is missing, hence the "-1" attached to "Type II"), two in the middle row and three in the posterior row]; the mantle has one dorsal and four lateral chromatophores (Jorgensen, 2006).

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Dorsal views of the chromatophores of a G. onyx paralarva, 8.9 mm ML, Gulf of Alaska. Left - Head. Right - Paralarva. Drawing from Jorgensen (2007).

We have seen two young G. onyx, 38 and 31 mm ML, with mantle chromatophores intact, that show several, large chromatophores on each side of the mantle (see photograph below). These  chromatophores were even more pronounced in the preserved specimens and may prove to have systematic value. At 31 mm ML the squid had virtually no chromatophores on its ventral surface of the mantle but abundant mantle chromatophores elsewhere.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Dorsolateral view of a barely alive G. onyx, 38 mm ML, off Monterey, California, showing the large, lateral, mantle chromatophores (arrows). Also note the orange digestive gland that is small and well posterior to the head. © Danté Fenolio

The size of the juvenile at which the various hooks first develop is often distinctive of the species.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Chart of the size ranges over which hooks in juveniles of G. onyx first appear. Chart modified from Young (1972).

Behavior


Figure. Dorsal view of G. onyx in the Dorsal Arm-curl posture at a depth of 950 m. Photograph© 2013 MBARI.

The Dorsal Arm-curl posture is displayed in a variety of oceanic squids. In the picture to the right, the tentacle clubs of G. onyx are directed anteriorly (ie, downward). In contrast, the clubs in the photographs of G. berryi in this posture, are directed posteriorly. Whether or not this will prove to be characteristic of these species remains to be seen.

Distribution

Type locality: 33°19'N, 118°45'W, eastern North Pacific off Southern California. G. onyx is broadly distributed across the North Pacific.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Distribution of G. onyx. Dark pink area indicates known range; light pink area indicates inferred range. Chart modified from Okutani, et al. (1988).

References

Jorgensen, E. M. 2007. Identification, distribution and relative abundance of paralarval gonatid squids (Cephalopoda: Oegopsida: Gonatidae)from the Gulf of Alaska, 2001-2003. Journ. Molluscan Studies, 73: 155-165.

Okutani, T., T. Kubodera and K. Jefferts. 1983. Diversity, distribution and ecology of gonatid squids in the subarctic Pacific: A review. Bull. Ocean Res. Inst., Univ. Tokyo, No. 26 (1):150-192.

Okutani, T., I. Nakamura and K. Seti. 1995. An unusual egg-brooding behavior of an oceanic squid in the Okhotsk Sea. Venus 54: 237-239.

Seibel, B. A., F. G. Hochberg, and D. B. Carlini. 2000. Life history of Gonatus onyx (Cephalopoda: Teuthoidea): deep-sea spawning and post-spawning egg care. Marine Biology 137 (3): 519-526.

Seibel, B. A., B. H. Robison and S. H. D. Haddock. 2005. Post-spawning egg care by a squid. Nature 438: 929.

Young, R. E. 1972. The systematics and areal distribution of pelagic cephalopods from the seas off Southern California. Smithson. Contr. Zool., 97: 1-159.
