Abraliopsis Joubin 1896

Richard E. Young and Kotaro Tsuchiya
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
The genus contains four subgenera (one of which, Micrabralia, is probably not a natural group) and about 20 species.
taxon links [up-->]Abraliopsis (Boreabraliopsis) [up-->]Abraliopsis (Pfefferiteuthis) [up-->]Abraliopsis (Micrabralia) [up-->]Abraliopsis (Abraliopsis) [down<--]Enoploteuthidae Interpreting the tree
close box

This tree diagram shows the relationships between several groups of organisms.

The root of the current tree connects the organisms featured in this tree to their containing group and the rest of the Tree of Life. The basal branching point in the tree represents the ancestor of the other groups in the tree. This ancestor diversified over time into several descendent subgroups, which are represented as internal nodes and terminal taxa to the right.

example of a tree diagram

You can click on the root to travel down the Tree of Life all the way to the root of all Life, and you can click on the names of descendent subgroups to travel up the Tree of Life all the way to individual species.

For more information on ToL tree formatting, please see Interpreting the Tree or Classification. To learn more about phylogenetic trees, please visit our Phylogenetic Biology pages.

close box

FigureAbraliopsis felis  at 362 m depth. © 2011 MBARI

Species of Abraliopsis

Abraliopsis (Boreabraliopsis) felis

Abraliopsis (Abraliopsis) hoylei
Abraliopsis (Abraliopsis) morisii
Abraliopsis (Abraliopsis) pacificus
Abraliopsis (Abraliopsis) tui
Abraliopsis (Abraliopsis) sp. B
Abraliopsis (Abraliopsis) NC4
Abraliopsis (Abraliopsis) sp. Z

Abraliopsis (Micrabralia) gilchristi
Abraliopsis (Micrabralia) lineata
Abraliopsis (Micrabralia) sp. E
Abraliopsis (Micrabralia) sp. NC1
Abraliopsis (Micrabralia) sp. NC2

Abraliopsis (Pfefferiteuthis) affinis
Abraliopsis (Pfefferiteuthis) atlantica
Abraliopsis (Pfefferiteuthis) chuni
Abraliopsis (Pfefferiteuthis) falco
Abraliopsis (Pfefferiteuthis) sp. A
Abraliopsis (Pfefferiteuthis) sp. P
Abraliopsis (Pfefferiteuthis) sp. V

Containing group: Enoploteuthidae

Introduction

Species of Abraliopsis are small squids that are most easily recognized by spherical "black" photophores (usually three) at the tip of each Arm IV. The black appearance is due to black chromatophores that tightly cover the photophores but when the latter luminesce, the chromatophores withdraw from the photophores. This feature is shared with Watasenia scintillans from waters around Japan.

Brief diagnosis:

An enoploteuthid ...

Characteristics


  1. Arms
    1. Suckers only at arm tips; arm-tip suckers in two series; suckers absent from arms IV (only hooks present).
    2. Right arm IV hectocotylized.

  2. Tentacles
    1. Manus of club with two series of hooks and one series, usually incomplete, of suckers.
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Oral view of the club of Abraliopsis (Abraliopsis) morisii

  3. Buccal crown
    1. Buccal crown with dark epithelial pigmentation on oral surface rather than typical chromatophores.*
    2. Buccal connectives attach to borders DDVD of arm I-IV. Note that in some species of Abralia the attachment is DDDD.
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window
    3. Figure. Side view of Abraliopsis sp. B. White arrow points to pigmented buccal crown. Black arrows point to large, pigmented photophores at the tips of arms IV. Photograph by R. Young.

  4. Fins
    1. Fins extend to posterior end of tail.

  5. Photophores.
    As in Abralia and Watasenia, Abraliopsis has three types of common integumental photophores covering the arms, head, funnel and mantle. In the photos below  the most complex of the integumental photophores with red color filters (called "complex" or "red" photophores) are easily recognized. The other two types of common integumental photophores (called "non-complex or "blue" photophores) have a blue color. The latter exhibit a variety of sizes and the largest of these, the second type, are photophores bearing large lenses. The smaller ones are the third type which are lensless. A fourth, but uncommon type of integumental photophore, is the colorless (ie, "white") photophores known only from the funnel groove. The structure of this type has not been investigated but these few photophores are clearly not all of the same structure.

    1. Two to four large photophores covered by black chromatophores on tips of each arm IV (see photograph under "Buccal crown.")*
    2. Five photophores on eyeball.*
    3. Eyelid photophores along entire eyelid circumference except for small anterior and posterior breaks in some species.
    4. Complex photophores of integument, in life, with red-colored filters.*
    5. Photophores of funnel groove on head, distinctly different with white color.*
    6. Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Ventral surface of the head and photophores of Abraliopsis sp. B.  Left - Three types of photophores are apparent: Small photophores with red filters, smaller photophores with a blue reflection and large photophores (the ocular photophores) beneath the skin on the ventral surfaces of the eyeballs. Middle - An enlargement of some of the skin photophores. Right - white photophores of funnel groove (hidden by the funnel in the middle photograph). The arrow points to the anterior-most white photophore in the midline of the funnel groove. To the side and above the arrow are the "red" and "blue" photophores. Photographs by R. Young.

      *Characters shared with Watasenia.

  6. Photophore terminology: Terminology for photophore distribution patterns can be found here.

  7. Spermatangia receptacles
    1. Located under dorsal collar or under gladius between stellate ganglia or both sites.

Classification

Species of Abraliopsis can be placed into four subgenera but the subgenus Micrabralia is probably not a natural group. The following table shows the primary taxonomic features of each group. See a more detailed comparison A. (Boreabraliopsis) and A. (Abraliopsis) on the A. (B.) felis page.

  Abraliopsis (Boreabraliopsis)
Abraliopsis
(Abraliopsis)
Abraliopsis
(Micrabralia)
Abraliopsis
(Pfefferiteuthis)
No. of species
 1  7  5  7
Oral surface of arms in males
Without papillae
Without papillae
With or without some papillae
Some or all arms with papillae
Ventral protective membrane of left arm IV, male,  Virtually absent
Virtually absent Variable but not greatly enlarged
Greatly enlarged  membrane and trabeculae, with papillae
Photophore arrangement on ventral surface of head
Scattered
Scattered
Red and blue integumental photophores in linear pattern, with or without additional scattered blue photophores.
Red and blue integumental photophores in linear pattern, with or without additional scattered blue photophores.
Length of dorsal flap of hectocotylus relative to ventral flap
Nearly equal
Absent to very small (~ third)
 ~ third to half
~ half

Pattern* of funnel-groove photophores.

See patterns here.

Simple Pattern:

Moderate Pattern:

Moderate (top) or Complex-1 Pattern (bottom):


Complex-2 Pattern:
*Caution, pattern can vary with size (see details).
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

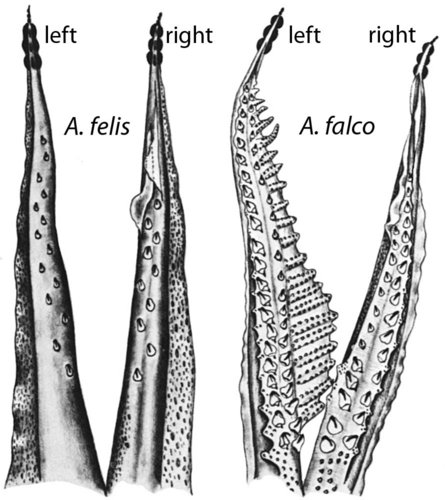

Figure. Arms IV from two subgenera showing some of the group characters. Note the papillae at the base of the arms in A. falco and the smooth arms in A. felis, and the greatly expanded ventral membrane on the left arm IV of A. falco. Drawings from Young (1972).

References

Tsuchiya, K. and T. Okutani. 1988. Subgenera of Enoploteuthis, Abralia and Abraliopsis of the squid family Enoploteuthidae (Cephalopoda, Oegopsida). Bulletin of the National Science Museum, Tokyo (series A) 14: 119-136.

Young, R.E. 1972. The systematics and areal distribution of pelagic cephalopods from the sea off southern California. Smiths. Contr. Zool., 97:1-159.

Young, R. E., L. A. Burgess, C. F. E. Roper, M. J. Sweeney and S. J. Stephen. 1998. Classification of the Enoploteuthidae, Pyroteuthidae and Ancistrocheiridae. Smithson. Contr. Zool., No. 586: 239-256.
