Australiteuthis aldrichi: Description continued

Click on an image to view larger version & data in a new window

Figure. Dorsal view of Australiteuthis aldrichi, 21.3mm ML, mature male, holotype, preserved. Photograph by Wen-Sung Chung.

Characteristics

1. Arms
1. Arm formula: III>IV>II>I.
2. Arms with biserial suckers.
3. Arm suckers in females normal.
4. Arm suckers highly modified in mature males:
1. Arm I - Proximal sucker small, distal 8 suckers larger (suckers 3 and 4 largest), arm-tip suckers very small.
2. Arm II - Suckers nos. 6-8 greatly enlarged (ca. 4-5.4 times sucker no. 1).
3. Arm III - Sucker no. 1 largest, suckers nos. 2-4 small, suckers 5-9 enlarged (ca. 2.5 times larger than sucker 2), more distal suckers normal.
4. Arm IV (right) - Sucker no. 1 greatly enlarged (slightly larger than arm width), more distal suckers normal.
5. Arm IV (left) - Hectcotylized, length variable, all suckers reduced to tiny swellings at tips of enlarged, conical-shaped sucker stalks.


Click on an image to view larger version & data in a new window

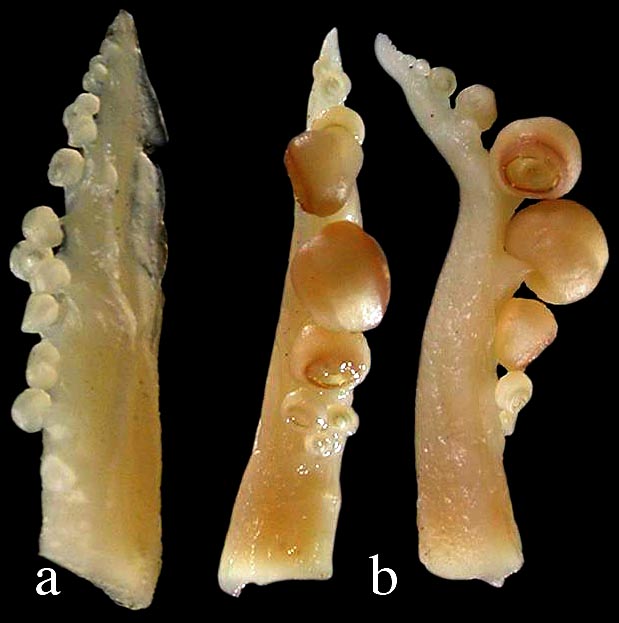

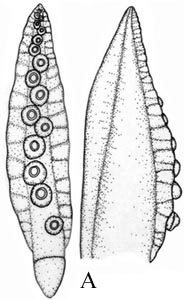

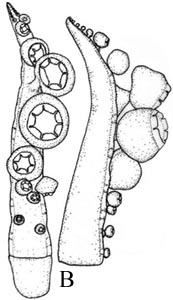

Figure. Arms I and II of A. aldrichi, 17.3 mm ML, mature male, paratype. A - Oral and side views of left arm I. Drawing. a - Side view of left arm I. Photograph. b - Oral and side views of left arm II. Photograph. B - Oral and side views of left arm II. Drawing.



Click on an image to view larger version & data in a new window

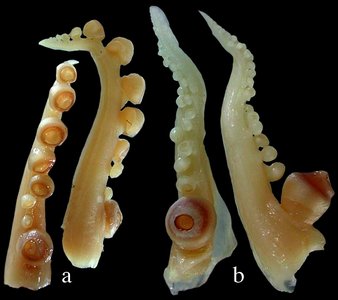

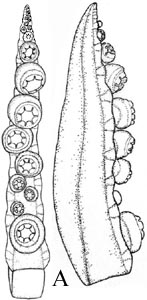

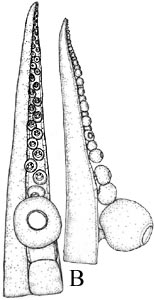

Figure. Arms I and II of A. aldrichi, 17.3 mm ML, mature male, paratype. A - Oral and side views of left arm III. Drawing. a - Oral and side views of left arm III. Photograph. b - Oral and side views of right arm IV. Photograph. B - Oral and side views of right arm IV. Drawing. Drawings and photographs from Lu (2005).



Click on an image to view larger version & data in a new window

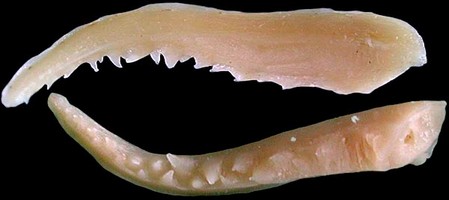

Figure. Hectocotylus (left arm IV) of A. aldrichi, 17.3 mm ML, mature male, paratype. Left - Oral and side views. Drawings from Lu (2005). Right - Side (top) and oral views. Photographs from Lu (2005).

5. Inner rings of arm I suckers smooth; largest suckers of arms II and III with 5-7 low, broad truncate around entire margin of inner rings; large sucker of arm IV with smooth inner ring.

2. Tentacles
1. Tentacular club with tetraserial armature.
2. Marginal rows of suckers on manus on expanded protective membrane; sucker stalks arise distally from broad trabeculae.
3. Distinct carpal cluster absent; carpal knobs absent.
4. "Carpal" sucker rings with ca. 9 blunt, conical teeth on distal half, proximal half smooth.
5. Large manal suckers with 14 sharply pointed conical teeth of distal 2/3, proximal 1/3 smooth.


Click on an image to view larger version & data in a new window

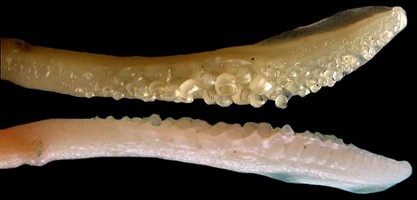

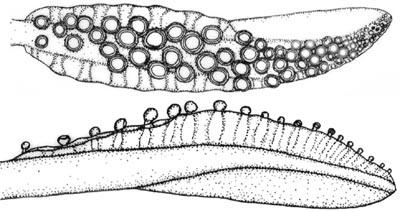

Figure. Tentacular club of A. aldrichi, 17.3 mm ML, mature male, paratype. Top - Oral-lateral view of the club. Photograph from Lu (2005). Bottom - Oral and side views of the tentacular club. Drawings from Lu (2005).

3. Buccal crown
1. Buccal connectives attach to the ventral margins of arms IV.
2. Buccal suckers absent.

4. Head
1. Head with long, narrow tentacular pocket.


Click on an image to view larger version & data in a new window

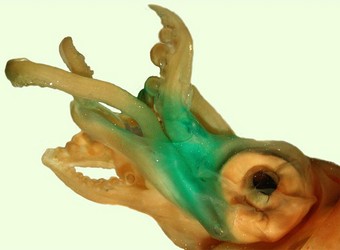

Figure. Ventrolateral view of the head and brachial crown of A. aldrichi, 19.4 mm ML, male, showing the tentacle pocket. The squid had been lightly stained with methylene blue.

2. Eyes covered by cornea.
3. Cornea without an eye pore.
4. Secondary eyelid absent.
5. Beaks:
1. Upper beak with deep notch at jaw angle and large tooth on shoulder; crest curved.
2. Lower beak without lateral wall fold; cutting edge serrated; crest curved.


Click on an image to view larger version & data in a new window

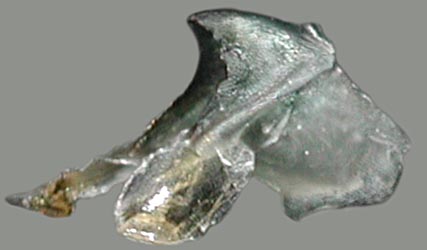

Figure. Left - Side view of upper and lower beak of A. aldrichi, 17.3 mm ML, mature male, paratype. Drawings from Lu (2005). Right - Oral lateral view of the lower beak. Photograph by Wen-Sung Chung.

6. Radula heterodont with rhachidian and first lateral teeth with three cusps; marginal plates present..


Click on an image to view larger version & data in a new window

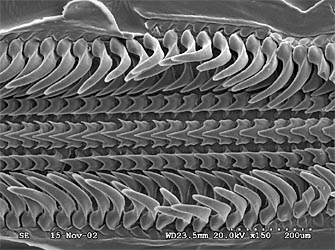

Figure. Scanning electron micrograph of the radula of A. aldrichi, 22.7 mm ML, mature male. Photograph from Lu (2005).

7. Head free from mantle in nuchal region; nuchal cartilage well-developed.


Click on an image to view larger version & data in a new window

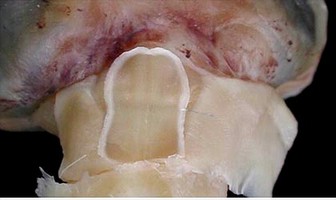

Figure. Left - Dorsal view of nuchal region of head with mantle removed of A. aldrichi, 17.3 mm ML, mature male, paratype, showing the nuchal cartilage. Right - Dorsal view of the nuchal cartilage, same squid. Drawing from Lu (2005).

5. Pigmentation
1. large brown chromatophores present on various parts of the Head and the anterior third of the dorsal mantle and the anterior half of the ventral mantle. Other regions including brachial crown, fins without chromatophores.

6. Shell
1. Shell a gladius.
2. At posterior extremity gladius curved ventrally over posterior visceral mass forming a cone-shaped structure.


Click on an image to view larger version & data in a new window

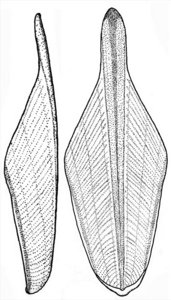

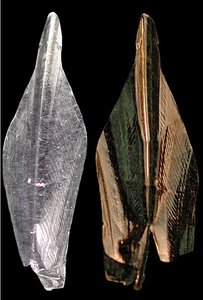

Figure. Gladius of A. aldrichi. Left pair - Ventral views, 21.9 mm ML, mature male . Photographs from Lu (2005). Right pair - Lateral and ventral views , 17.3 mm ML, mature male, paratype. Drawings from Lu (2005).

7. Viscera
1. Mantle septum absent.
2. Mature female with nidamental and accessory nidamental glands.
3. Only left oviduct functional.
4. Eggs relatively large, 1.5-1.75 mm by 0.96-1.32 mm.


Click on an image to view larger version & data in a new window

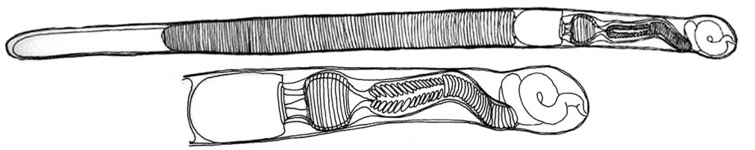

Figure. Spermatophore of A. aldrichi, 17.3 mm ML, mature male. Top - Whole spermatophore. Bottom - Enlargement of the oral end showing the cement body and ejaculatory apparatus.

References

Lu, C. C. 2005. A new family of myopsid squid from Australasian waters (Cepahlopoda: Teuthida). P. 71-82. In: Chotiyaputta, C., E. M. C. Hatfield and C. C. Lu (editors). Cephalopod biology, recruitment and culture. International Cephalopod Symposium and Workshop, 17-21 Feb. 2003. Research Bulletin, Phyuket Marine Biological Center, No. 66, Published by the Center Phuket, Thailand, July 2005, 365 pp.
