Note

Teuthowenia pellucida: Description continued

Richard E. Young and Katharina M. Mangold (1922-2003)
  1. Tentacle
    1. Tentacular club with poorly defined carpal cluster.
    2. Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Oral view of the tentacular club of T. pellucida. Drawing from Voss, 1985, pp. 43 and 44.

  2. Arms
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

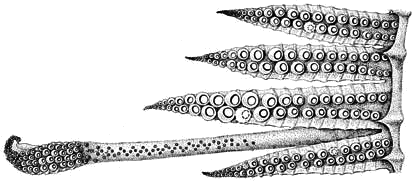

      Figure. Oral view of the brachial and buccal crowns of T. pellucida from a subadult female, 140 mm GL. Drawings are from Voss, 1985, pp. 43 and 44

      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Oral view of arm suckers of T. pellucida. A- Sucker from end of arm III (pair 19), subadult female, 140 mm ML. B- Next to last sucker (pair 12) proximal to modified tip of mature male, 201 mm ML. C- Largest sucker from arm III (pair 12), subadult female, 140 mm ML.Drawings are from Voss, 1985, pp. 43 and 44

      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Side and oral views of arm base suckers of a mature male of T. pellucida. The basal suckers of all arms of mature males have swollen, fleshy collars and rings with reduced apertures. To the right are two views of the arm base suckers (pair 2, arm II) of a mature male, 201 mm ML.Drawings are from Voss, 1985, pp. 43 and 44

  3. Head
    1. Eyeball with three photophores.
    2. Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Ventral and lateral views of the eyes showing ocular photophores of T. pellucida. Drawings are from Voss, 1985, pp. 43 and 44

  4. Funnel
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. View of the funnel organ of T. pellucida, 201 mm ML, female. Drawings are from Voss, 1985, pp. 43 and 44

About This Page
Drawings from Voss (1985) printed with the Permission of the Bulletin of Marine Science.
