Pyroteuthis serrata Riddell, 1985

Richard E. Young and Katharina M. Mangold (1922-2003)
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Containing group: Pyroteuthis

Introduction

This species is most easily separated from other members of the genus by the arrangement of photophores on the tentacles and the structure of the hectocotylus.

Characteristics

  1. Tentacle photophores
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Schematic illustration of the tentacle of P. serrata showing photophores. Drawing by R. Young.

    1. Four large, ellipsoidal photophores [all double (?) photophores].
      1. Most distal member well proximal to base of carpal cluster (i.e., distance between this photophore and distal, spherical photophore much greater than distance between distal two ellipsoidal photophores).
    2. Two smaller, spherical photophores, one at base of tentacular stalk and one at base of club.
    3. Spherical to ovoid superficial photophore absent.
  2. Hectocotylus (right arm IV) with:
    1. 10-12 proximal hooks.
    2. Each proximal hook with primary cusp bearing irregular serrated inner edge and secondary cusp as long as primary and sharply pointed.
    3. Elongate flap distal to proximal hooks.
    4. 8-12 hooks opposite flap.
    5. 7-20 suckers at tip.
      6. Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

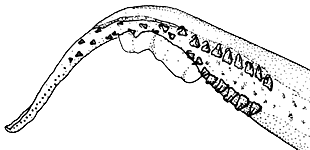

      Figure. Oral view of the hectocotylus of P. serrata.  Drawing from Riddell, 1985.

Comments

Compare the following structures with other species of Pyroteuthis:

Distribution

P. serrata is known only from the vicinity of New Zealand north of the Tropical Convergence (Riddell, 1985). At this locality there is virtually no overlap with the more southernly P. margaritifera.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

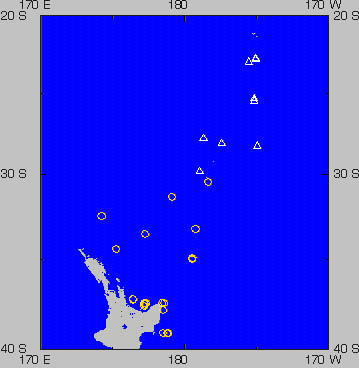

Figure. Geographical distribution chart of species Pyroteuthis in the region of New Zealand. Yellow circles represent P. margaritifera and white triangles P. serrata. Chart modified from Riddell (1985)

References

Riddell, D. J. 1985. Enoploteuthidae of the New Zealand Region. Fisheries Research Bulletin. New Zealand Ministry of Agriculture and Fisheries, No.27: 1-52.

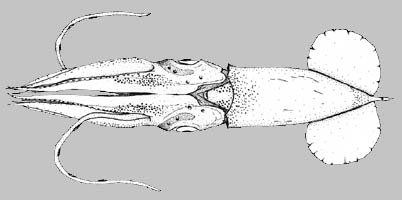

Title Illustrations
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Scientific Name Pyroteuthis serrata
Reference Riddell, D. J. 1985. Enoploteuthidae of the New Zealand Region. Fisheries Research Bulletin. New Zealand Ministry of Agriculture and Fisheries, No.27:1-52.
Sex Male
Size 29.7 mm ML
